ST3400 3-ATI TAWS/RMI

ST3400 3-ATI TAWS/RMI

The industry’s best-selling integrated Terrain Awareness and Warning System (TAWS) for corporate, regional and air transport markets, the ST3400 is an integrated panel-mount system that outperforms cumbersome remote-mount TAWS systems that weigh and cost far more. A 3-ATI-size system that features a TAWS database, processor and oversized, high-resolution color display in a single unit, the ST3400 meets TSO C151b for both Class A and Class B requirements. Also incorporating RMI functionality, the ST3400 serves as a drop-in replacement for conventional RMI units, displaying terrain maps, topographic maps, navigation waypoint maps and TCAS data.

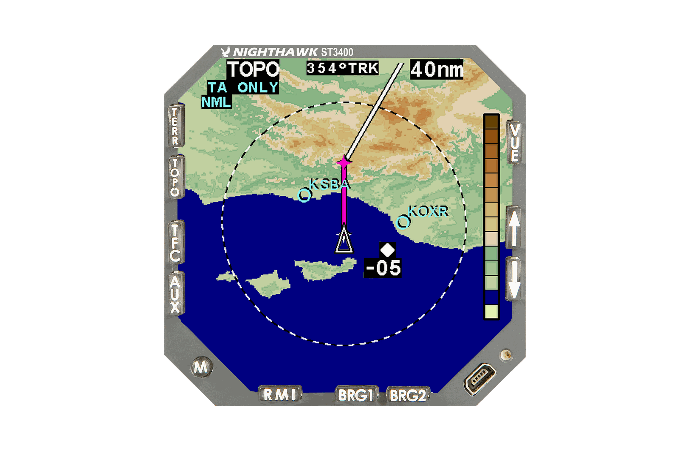

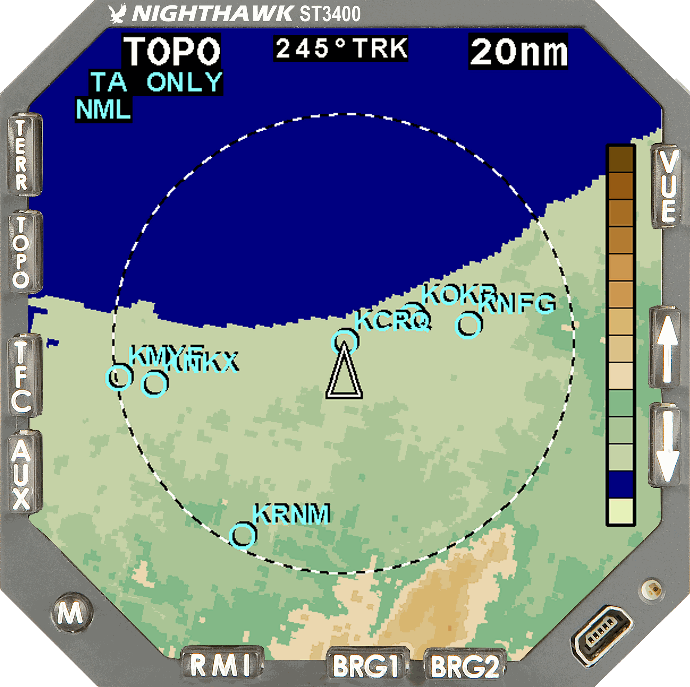

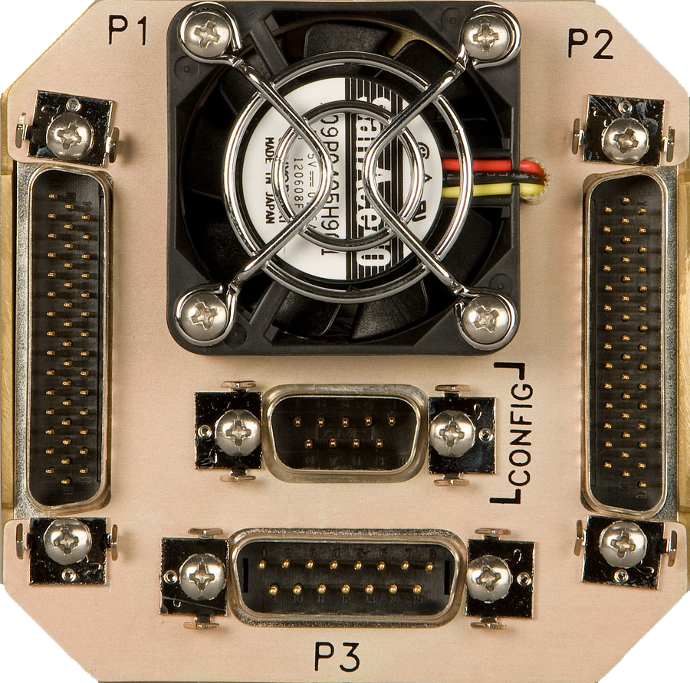

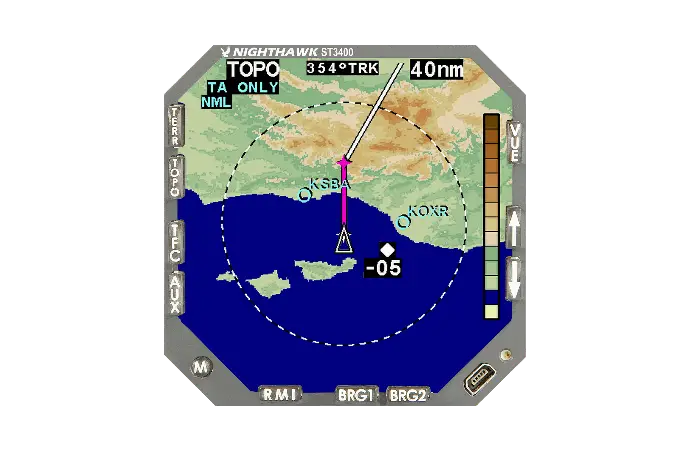

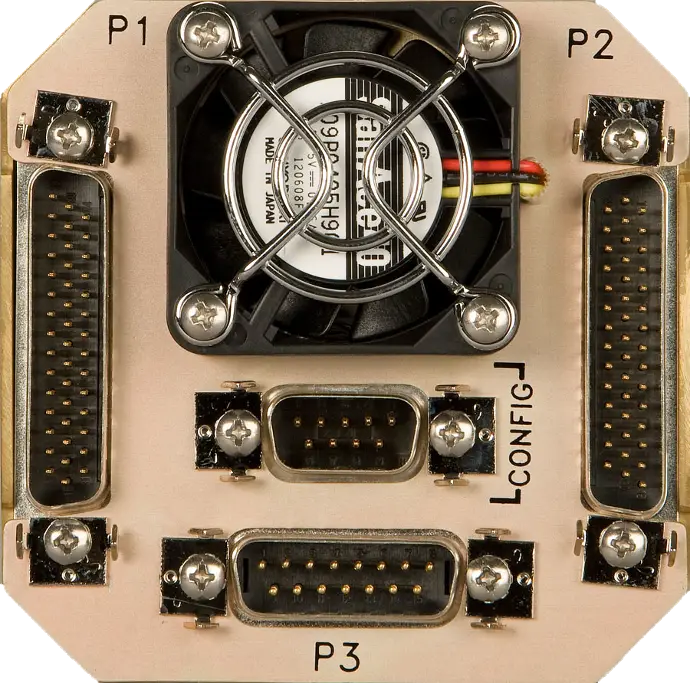

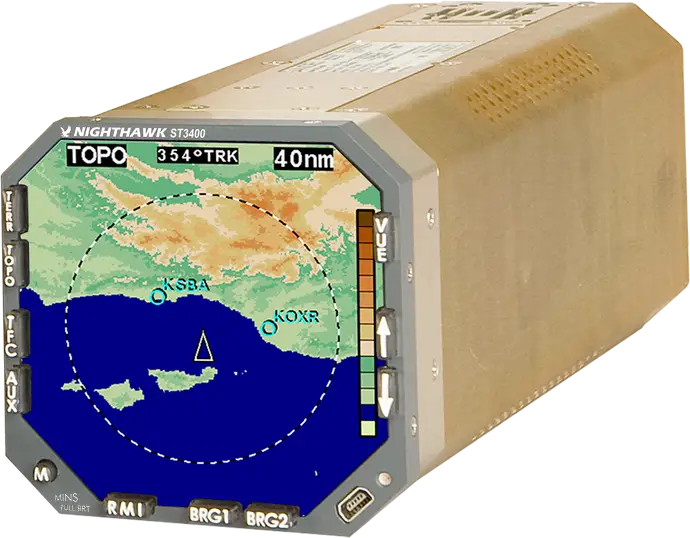

Product Images

Operational & Functional Benefits

  • Complete FAA TSO C151b TAWS compliance
  • Meets Class A TAWS requirements for airlines and Part 135 operations
  • Meets Class B TAWS requirements for Part 91 operations
  • Full-time terrain display
  • Runway and waypoint overlay
  • Integrated TAWS computer and flat-panel display
  • RMI display
  • >10,000 hour MTBF
  • Drop-in, 3-ATI form factor
  • Easy and inexpensive to install
  • Costs up to 50% less than other TAWS
  • No “happy boxes” required
  • Works with digital and analog avionics
  • A wide variety of FMS/GPS interfaces
  • TCAS I display option

Documents

Product Support

ST3400 Installation Manual (3.0 MB)
ST3400 Pilots Guide (692 kB)
Register Your Product

ST3400 Software Version History

​Note: Software versions denoted with ‘A’ are applicable only to Mod A hardware (serial numbers 2000 through 6-7349).
Software versions denoted with ‘B’ are applicable only to Mod B hardware (serial numbers 6-7350 and higher).

B3.15 – Released 8/29/2016
  • Added support for APN-194 radar altimeter.
A3.15 – Released 8/29/2016
  • No operational changes
A3.14/B3.14 – Released 4/24/2014
  • Corrects potential communications issue with RS-232 GPS data during power-on sequence.
B3.13 – Released 2/14/2014
  • Support of ST3400 Mod B hardware.
​A3.13 – Released 4/10/2008
  • Corrected possible unintentional activation of RMI display mode.
A3.12 – Released 3/12/2008
  • Factory testing.
A3.11 – Released 2/14/2008
  • Added support for LED backlighting.
A3.10 – Released 6/18/2007
  • Added option for alternate FLTA alert audio.
  • Added selectable pilot/co-pilot position setting for bearing pointer colors.
  • Removes possible erroneous TAWS FAIL indication on RMI and TCAS displays.
A3.09 – Released 3/10/2006
  • Reduction of nuisance alerting for systems using analog air data computers operating in temperatures below standard by 20 degrees or more Celsius.
A3.08 – Released 2/24/2005
  • Added support for separate analog LOC and VOR input.
  • Added interface for ARINC 575.
  • Added ARINC 565 coarse and fine synchro interface for PA and CBA selections.
  • Added additional validity check for PDA.
  • Extended database coverage to 73N latitude.
A3.07 – Released 11/10/2004
  • Added support for CIC 020702 air data computer.
  • Modified filtering for radar altimeter data to reduce nuisance alerts.
  • Changed default calibration value for composite NAV interface.
A3.06 – Released 9/07/2004
  • Corrected display of composite NAV bearing pointer information.
  • Corrected operation of external TAWS inhibit switch.
  • Modified operation of ARINC 429 magnetic heading data.
A3.05 – Released 8/03/2004
  • Factory testing.
A3.04 – Released 7/28/2004
  • Factory testing.
A3.03 – Released 7/15/2004
  • Change to support Mod A hardware.
  • Self-test will operate all external annunciator lamps.
  • TCAS key code not overwritten by configuration module.
  • Display auto-dim function enabled.
  • Improved lamp monitoring function.
  • Corrected display of flight plans from KLN-94.
3.07 – Released 10/14/2004
  • Corrected display of composite NAV bearing pointer information.
  • Modified operation of ARINC 429 magnetic heading data.
  • Modified filtering of radar altimeter data to reduce nuisance alerts.
  • Changed default calibration value for composite NAV interface.
3.02 – Released 4/16/2004
  • Ensure P3-8 “TCAS INH” function operates during maintenance page operations so it can also be used as “audio enable”.
3.01 – Released 3/16/2004
  • Displayed TRK is flagged when it should not be flagged.
3.00 – Released 2/25/2004
  • Implement a TAS/TCAS function.
  • Implement a secondary VSI channel to support adjustment for TCAS-II VSI display.
  • Added optional 400,300,200,100,50,40,30,20,10′ callouts from RA.
  • Allow selection of function of P3-8 discrete to support TCAS and external GPWS FAIL.
  • Added optional DH callout.
  • Added optional input for GS OVRD external switch.
  • Added optional input for FLAPS OVRD external switch.
  • Added optional BC discrete input to inhibit GS alert.
  • Added processing to support FreeFlight 1201 GPS/WAAS module.
  • Improved power fail recovery when power fail spike falls outside of DO-160D parameters.
  • Improved OAT processing (new configuration).
  • Improved handling of ADF bearing on maintenance page.
  • Flaps threshold not being stored in NVS.
  • Improve available configurations of additional equipment.
  • Increase amount of time unit will record data past 10 hours.
  • Relocated annunciations to support inclusion of TCAS.
  • Support a configuration with Pressure Alt but without CBA.
  • Improved tests to split pressure and CBA altitudes to better show if correct source is being used.
  • Added ramp down audio output at end of clip to reduce noise.
  • Added reduced low-end of brightness adjustment.
2.04 – Released 1/13/2004
  • Assure enough time to read the full parameter block during power-up.
2.03 – Released 9/11/2003
  • Lamp cycle counter counts multiple times on system turn-on.
  • Lamp hours resets on software upload.
  • Lamp hours updated when displaying splash screen, fatal error or CM information.
  • Altitude values in the Himalayan mountains are sometimes treated as negative values, or ocean-code.
2.02 – Released 8/10/2003
  • Make provision for radar altimeter RT100.
  • Incorporated support AHRS, 429, heading status input with roll angle.
  • Improved startup operation.
  • Incorporated on Ground Disable of Class B alerts.
  • Incorporated selection for additional GPS receivers.
  • Assured waypoint text always shown.
  • Incorporated support additional support for airdata computers.
  • Added ranges lower than 5nm.
  • Improve fail equipment errors.
  • Added new discrete out.
  • Activate Config Module.
  • Improve handling of and added some maintenance Mode items in software.
  • Code style improvements.
​2.01 – Released 4/17/2003
  • Supports Shadin Serial ADC input.
  • Support for synchro flap input.
  • Improved handling of partial inverter failure.
2.00 – Released 2/25/2003
  • Supports GPS altitude from Garmin 400/500 series GPS receivers.
  • Supports pressure altitude input from ARINC 429 ADC.
  • Improved display of GPS flight plans.
  • Corrected display of flight plan when direct-to on GPS is used to bypass waypoints.
  • Supports KRA-405 and RT-100 radar altimeters.
  • Added display of course line when GPS is in OBS mode.
  • Improved GPWS Mode 5 logic.
  • Supports analog OAT probe input.
  • Supports high speed ARINC 429 GPS/FMS input.
  • Support AZ-252 ADC.
  • Improved display processing routines.
1.05 – Released 11/01/2002
  • Support Collins ADC-80.
  • Improve USB port performance.
  • Support discrete input for radar altimeter failure.
1.04 – Released 6/28/2002
  • Initial release.

TAWS Products (ST3400)

The ST3400 TAWS database is updated 3-4 times a year. Please contact Nighthawk Flight Systems to purchase a database update.

The database consists of two files, an airport file and a terrain/obstacle file, both of which are updated through the USB interface.

ST3400 Database Update Instructions (1.8 MB)

Current Database Version

Airport Listing – ST3400 December 2021 Database (6 MB)

Airport Database: Cycle 2501 Effective JAN 23, 2025

Terrain/Obstacle Databases Merged:

Obstacle: 01JAN25 (2025Q1)

Terrain: 30NOV18

Database Regions

The following coverage regions are available for the ST3400.

Note: The worldwide region is only supported by ST3400 units with serial numbers 2000 or higher.

North America Region



Africa Region



Asia Pacific Region





Europe Region

Globe Region



South America

HeliTAWS Products (ST3400H and ST3453H)

The HeliTAWS database consists of four files for the following datasets: airports, geographic overlay (water bodies and roads), obstacles, and terrain.

Current database revision dates as shown during startup:

Terrain Revision: 30NOV18

Obstacle Revision:01JAN25 (2025Q1)

Airport Revision: Effective JAN 23, 2025, Cycle 2501

Overlay Revision: 01JAN13

Database updates are available on a yearly subscription basis. Please contact Nighthawk Flight Systems to order and download an update.

WIREWATCH® Transmission Line Coverage Information

Currently, transmission line data is available the United States, Canada and New Zealand. This data is updated as part of the obstacle database file.

HeliTAWS Transmission Line Coverage – USA and Canada (721 kB)



ST3400 TAWS STC Listing

Nighthawk Flight Systems STCs

  • Cessna 421C – SA1316LA
  • Raytheon King Air C90, 200, 300 and B300 – SA01340LA

Other STCs

The following STCs are held by third party companies. Please contact the STC holder directly for purchase information.

  • Airbus A300
    EAD Aerospace, Toulouse, France
    Contact: Francisco Rodrigues, 33-5-62-13-08-87, https://francisco.rodrigues@ead-aerospace.com/
    STC Number ST03069AT

  • Antonov An-12
    Avitex, Phoenix, AZ and Moscow, Russia
    Contact: Stanislav Agapov, 858-922-7997, https://stanislav.agapov@avitexat.com/

  • Antonov An-12
    Rosaero, Moscow, Russia
    Contact: Oleg Chistyakov, +371 9353739, https://chio-lat@mail.ru/

  • Antonov An-24, An-26
    Rosaero, Moscow, Russia
    Contact: Oleg Chistyakov, +371 9353739, https://chio-lat@mail.ru/

  • BAE Jetstream 31, 32
    B/E Aerospace (formerly EMTEQ), New Berlin, WI
    Contact: Chris Medlock, 262-679-7190, https://chris_medlock@beaerospace.com/
    STC Number SA03020AT; EASA.IM.A.S.01470

  • BAE Jetstream 3100, 3200 Series
    Scandinavian Avionics, Billund, Denmark
    Contact: Hardy B. Truelsen, +45 7950 8040, https://hbt@scanav.com/
    EASA.A.S.02703

  • Beechcraft 1900 C/D
    B/E Aerospace (formerly EMTEQ), New Berlin, WI
    Contact: Chris Medlock, 262-679-7190, https://chris_medlock@beaerospace.com/
    STC Number SA02821AT
    EASA.IM.A.S.01477
    Canadian Approval Ref. P-05-0324

  • Beechcraft 1900 C/D
    Maxcraft Avionics, Calgary, Canada
    Contact: 604-465-3080, https://sales@maxcraft.ca/
    STC Number SA 12-78

  • Beechcraft 400
    Pyka Aerospace, San Antonio, TX
    Contact: Stu Perl, 210-490-1472

  • Beechcraft 99
    Rocky Mountain Aircraft, Calgary, Canada
    Contact: Tim Shaw, 403-288-3305, https://rocky@pathcom.ca/
    STC Number SA 04-52 (Canada)

  • Boeing 727-100/200
    Janzair Consulting, Ft. Lauderdale, FL
    Contact: Bill Janzer, 949-359-0055, https://janzair@msn.com/
    STC Number ST03072AT

  • Boeing 717
    Avionics Group, Miami, FL
    Contact: Tom Brewer, 305-238-9045, https://tbrewer@avionicsgroup.com/
    STC Number SA9184AT-T

  • Boeing 727
    DC Aerospace, Centerville, GA
    Contact: David Chadwick, 478-953-1322, https://david@dcaerospace.com/
    STC Number ST03011AT
    EASA.IM.A.S.02214

  • Boeing 737
    Avionics Group, Miami, FL
    Contact: Tom Brewer, 305-238-9045, https://tbrewer@avionicsgroup.com/
    STC Number ST02997AT

  • Boeing 747
    Avionics Support Group, Miami, FL
    Contact: Alex Rodrigo, 305-378-9786, https://arodrigo@asginc.net/
    STC Number ST03009AT

  • Bombardier Challenger 600, 601, 604
    DC Aerospace, Centerville, GA
    Contact: David Chadwick, 478-953-1322, https://david@dcaerospace.com/
    STC Number ST02878AT

  • CASA 212 Series 200/300
    AAR Airlift Group
    Contact: William Szekely, https://william.szekely@aarcorp.com/
    STC Number ST03305AT

  • CASA 235 Series 100/200/300
    Southeast Aerospace, Melbourne, FL
    Contact: William Szekely,https://william.szekely@aarcorp.com/
    STC Number ST03537AT

  • Cessna Citation 500,550, S550, 560
    Scandinavian Avionics, Billund, Denmark
    Contact: Hardy B. Truelsen, +45 7950 8040, https://hbt@scanav.com/
    EASA.A.S.02484

  • Convair 340/440
    DC Aerospace, Centerville, GA
    Contact: David Chadwick, 478-953-1322, https://david@dcaerospace.com/
    STC Number ST03062AT

  • DeHavilland DHC-6 Twin Otter
    Rocky Mountain Aircraft, Calgary, Canada
    Contact: Tim Shaw, 403-288-3305, https://rocky@pathcom.ca/
    STC Number SA 02-128 (Canada), SA01869NY (US)

  • Dornier DO-228-100/101/200/201/202/212
    Scandinavian Avionics, Billund, Denmark
    Contact: Hardy B. Truelsen, +45 7950 8040, https://hbt@scanav.com/
    EASA.A.S.02559

  • Douglas DC-3
    Western Aircraft, Boise, ID
    Contact: 208-338-1870, https://servicesales@westair.com/
    STC Number ST02164CH

  • Douglas DC-9
    Avionics Group, Miami, FL
    Contact: Tom Brewer, 305-238-9045, https://tbrewer@avionicsgroup.com/
    STC Number ST02998AT

  • Embraer 120
    B/E Aerospace (formerly EMTEQ), New Berlin, WI
    Contact: Chris Medlock, 262-679-7190, https://chris_medlock@beaerospace.com/
    STC Number ST03022AT; EASA.IM.A.S.01476

  • Fairchild SA227-AC, -CC, -DC
    Aircraft Radio, Queensland, Australia
    Contact: Jeff Holland, 07-3277-4500, https://jeff@aircraftradio.com.au/
    STC Number ASA121SY

  • Fairchild SA227-CC, -DC
    Maxcraft Avionics, Pitt Meadows, BC, Canada
    Contact: 604-465-3080, https://sales@maxcraft.ca/
    STC Number SA15-25, FAA STC SA03642NY

  • Fairchild SA226-TC, SA227-AC, -BC
    Scandinavian Avionics, Billund, Denmark
    Contact: Hardy B. Truelsen, +45 7950 8040, https://hbt@scanav.com/
    EASA.A.S.02863

  • Gulfstream G-I
    DC Aerospace, Centerville, GA
    Contact: David Chadwick, 478-953-1322, https://david@dcaerospace.com/
    STC Number ST03055AT

  • Gulfstream G-II and G-IIB
    Business Jet Services, Dallas, TX
    Contact: Kevin Jordan, 214-654-1511,https://kjordan@businessjetservices.com/
    STC Number ST10399SC

  • Gulfstream G-II, III
    DC Aerospace, Centerville, GA
    Contact: David Chadwick, 478-953-1322, https://david@dcaerospace.com/
    STC Number ST03101AT

  • Gulfstream G-II, III
    Aero Air, Hillsboro, OR
    Contact: Gary Miller, 714-993-5799, https://gmiller@aeroair.com/
    STC Number ST03125AT

  • Hawker Beechcraft 125-700
    Lees Avionics Ltd., Marlow, United Kingdom
    Contact: David Wyatt, +44 1494 513661, https://david.wyatt@leesavionics.co.uk/
    EASA.A.S.03684

  • Learjet 31, 31A, 35, 35A, 36, 36A
    Scandinavian Avionics, Billund, Denmark
    Contact: Hardy B. Truelsen, +45 7950 8040, https://hbt@scanav.com/
    EASA.A.S.03154

  • McDonnell Douglas DC-10
    Contact your regional sales manager for information
    Contact Us

  • McDonnell Douglas MD-80, MD-88
    Avionics Group, Miami, FL
    Contact: Tom Brewer, 305-238-9045, https://tbrewer@avionicsgroup.com/
    STC Number ST02998AT

  • McDonnell Douglas MD-90
    Avionics Group, Miami, FL
    Contact: Tom Brewer, 305-238-9045, https://tbrewer@avionicsgroup.com/
    STC Number ST02998AT

  • Raytheon King Air 200, B200, 300, 300LW, B300
    Scandinavian Avionics, Billund, Denmark
    Contact: Hardy B. Truelsen, +45 7950 8040, https://hbt@scanav.com/
    EASA.A.S.01349

  • Tupolev Tu-134A, Tu-134A-3, Tu-134A-3m
    Avitex, Phoenix, AZ and Moscow, Russia
    Contact: Stanislav Agapov, 858-922-7997, https://stanislav.agapov@avitexat.com/

  • Tupolev Tu-134
    Rosaero, Moscow, Russia
    Contact: Oleg Chistyakov, +371 9353739, https://chio-lat@mail.ru/

ST3400 Software Update Access
